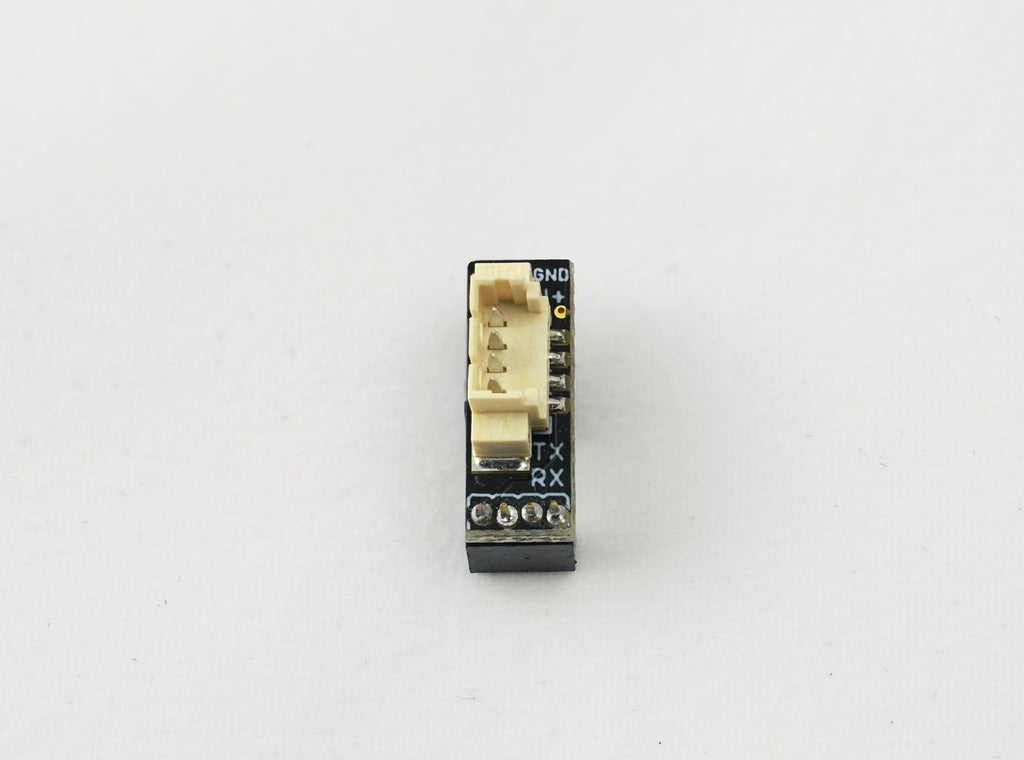

This Serial Interface adapter makes the connection of the Black Magic Probe Auxilary serial interface to 1 BIT SQUARED products very simple. Just plug the adapter into the Serial Interface cable on one end and the Lisa/S onto the other.

In striving for smaller hardware, 1 BIT SQUARED is incorporating the 4 pin 0.05" pitch serial connector into some of our designs.

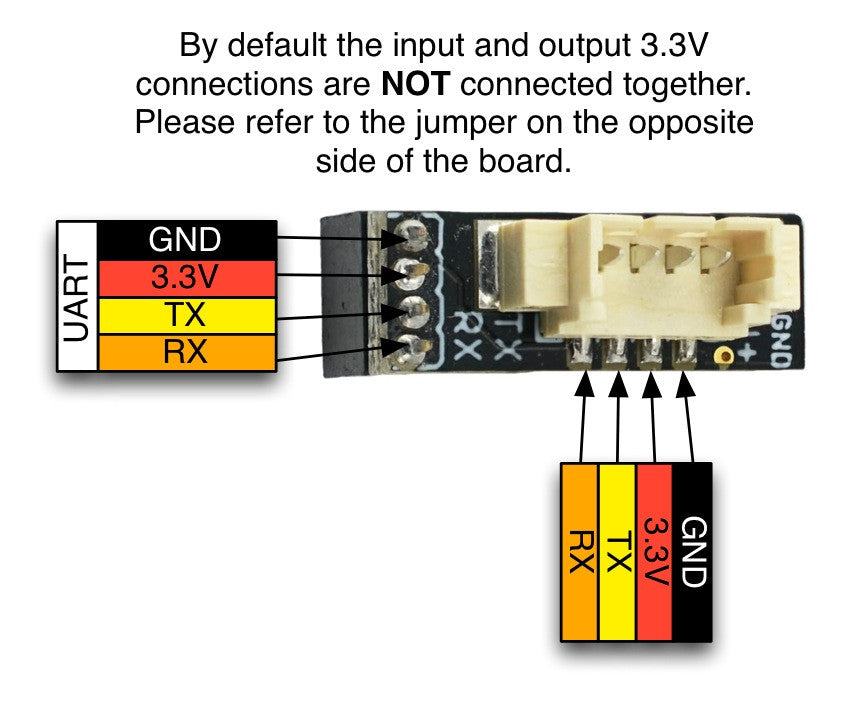

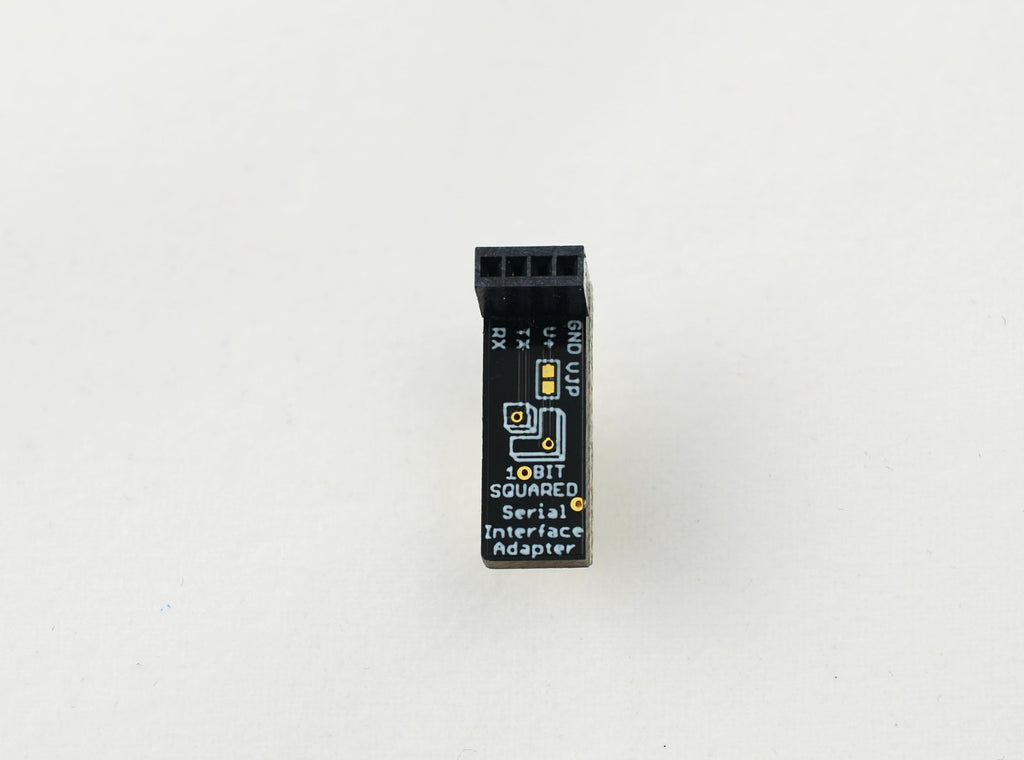

The pinout of our Serial connector is the following:

• GND
• V+ (disconnected in the adapter by default)
• RX
• TX
